LEVELPARKER 570

In the fully automated system Levelparker 570 cars are slided and glided closer together in a way like a puzzle.

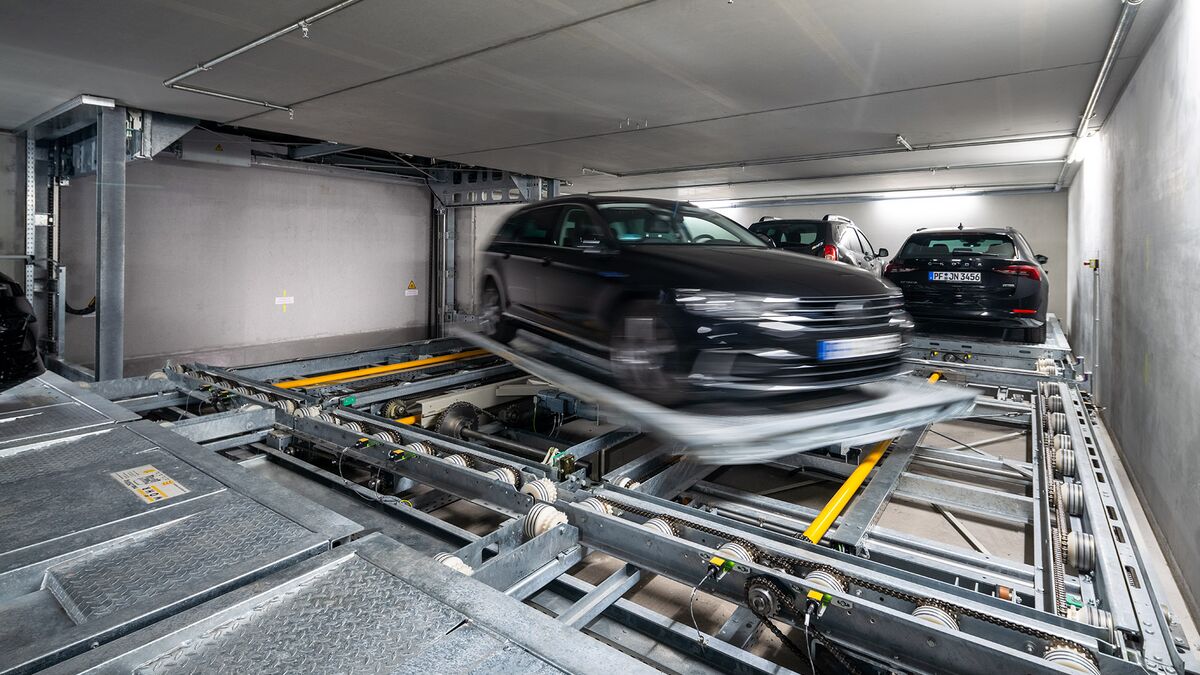

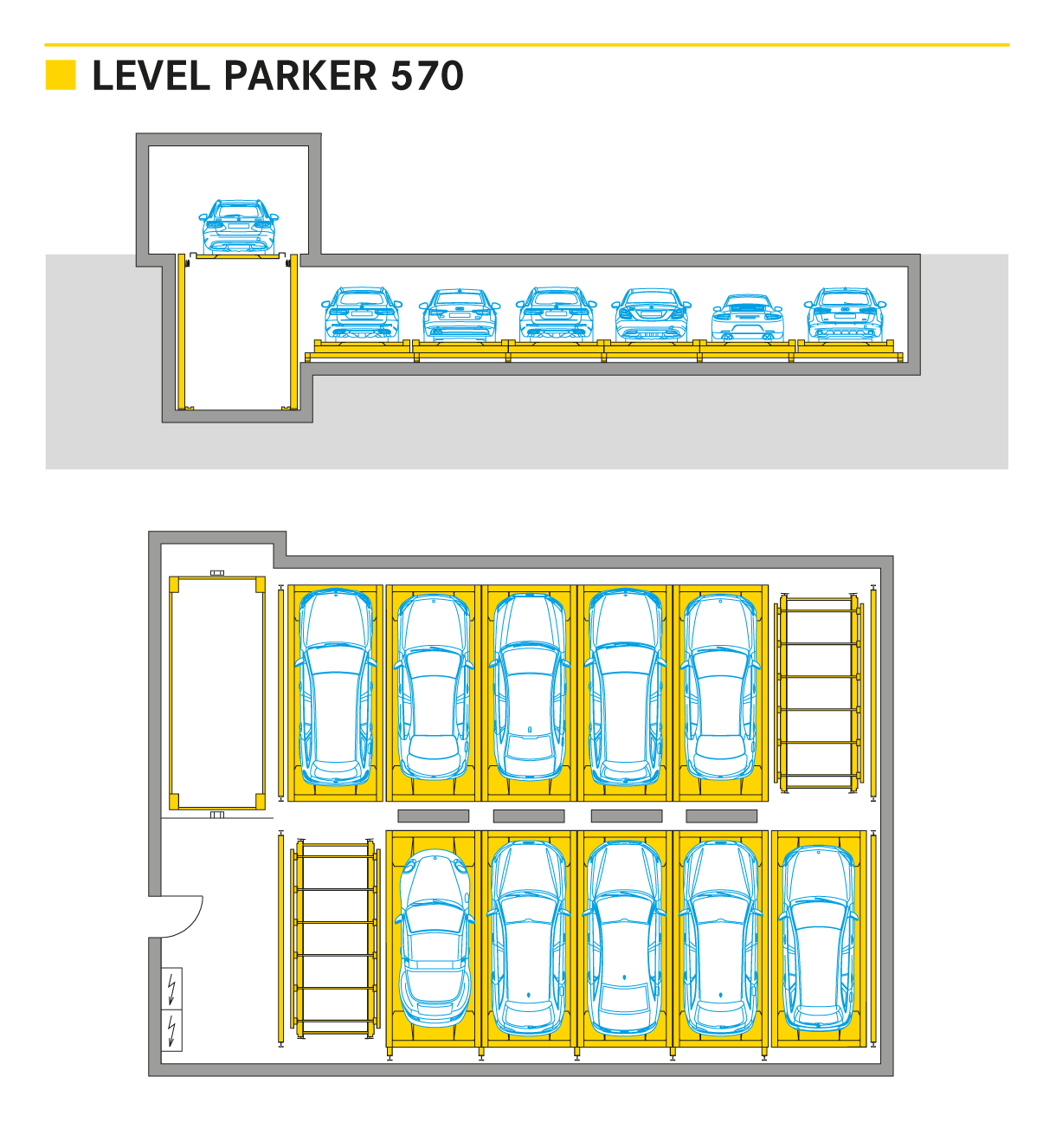

The fully automatic parking system Levelparker 570 for 10 to 50 cars on up to 5 levels above each other and 2 to 6 platform rows behind each other. The Levelparker 570 provides space-saving parking by moving the cars closer together on one or more levels. At each level the cyle movement for transporting the cars takes place by longitudinal and transverse shiftign of the platforms. A vertical lift connects the transfer area with the parking levels which can be arranged either above or underground. Integration of a Turntable is possible to have the car in forward direction when parking out.

Specification

  • Automatic car parking system for parking vehicles on 1 to 4 parking levels
  • For small footprint areas
  • Multiple row arrangement with 3, 4 or 5 rows behind each other possible
  • Safe for user and cars (no narrow ramps, dark stairs, no damage of theft or vandalism)
  • No need for ramps and driving lanes
  • No costly illumination and ventilation necessary
  • Variation options for individual project requirements
  • Integrated Turntable option
  • For car weight up to 2,500 kg, higher loads are possible after consulting WÖHR
  • Easy operation with different control options, from RFID chip to remote control
  • Suitable for residential and office building
  • Following the idea of "Green-Parking"
